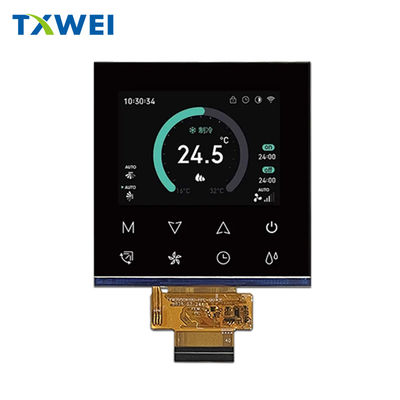

4-inch LCD square screen 480*480 resolution MIPI/RGB interface 86 switch panel player display screen

3.95-inch 'small square screen' out of the circle! TXW395041B0 lifts the 86 switch panel directly to the flagship level

Why is it a 'square screen' again?
Those who work in smart homes know that circular UI is the most pleasing in a 1:1 ratio - without black borders, no cropping, and icons that don't deform no matter how big they are. So we made 3.95 inches into a 480 × 480 square, stretched the visible area to 71.86 × 70.18 mm, and stuffed it into the 86 box without leaving any gaps.

02 | Not picking angles is true intelligence
IPS Full View, officially known as ALL O'CLOCK, means that when you stand, squat, or look diagonally, the colors will not "flip over". Installed on the living room wall, the whole family can see the temperature, humidity, music lyrics, and even doorbell screen at a glance from any angle.

03 | Brightness of 300 nits, stable even during the day
300 nits may not sound exaggerated, but when combined with a frosted glass cover, it is still clear under 800 lux illumination in the living room during the day. Key low power consumption: 8 LED side in backlight, can be lit up with 5 V/150 mA on the entire board, does not heat hands in summer, and does not flash screen in winter.

04 | Dual interface form, zero threshold for development
3-SPI: Tune registers, flash libraries, and run with just one DuPont wire. 18 bit RGB: Running a 60 Hz video stream without dropping frames.
Extra 2 lanes of MIPI are reserved, and the new board to be released next week can be directly plugged in and used.
40 Pin 0.5 mm FPC, Positive and negative insertion does not waste the board, saving one SMT for sampling.

05 | Wake up in seconds even at -20 ℃
Has the heating system in Northeast China stopped? Outdoor fresh air fan? Don't panic, the working temperature is -20 ℃~+70 ℃, and it has been tested to be -18 ℃ in Harbin. The indoor wall will hang overnight, and the next day it will light up with just a touch of your finger. If the storage temperature drops to -30 ℃, logistics will not explode during winter.

06 | Incell touch, one less layer of glass
The touch layer is directly made inside the LCD, and the whole machine is thinner by 0.4 mm, leaving more space for the power board in the 86 box. Wet hands, oily hands, and wearing household gloves can all be operated, so Mom no longer needs to find a cloth to wipe the screen in the kitchen.

Can be applied to:

▶86 switch panel
Square UI with zero cutting, IPS full view without height selection, 300 nits not gray during the day, 2mm thickness inserted into metal frame without bulging.
Intelligent lighting, scene panel, curtain/floor heating central control.
▶portable player
480 × 480 pixel 1:1 album cover fully displayed; The RGB 60 Hz visualization spectrum strip will not tear.
→ Bluetooth speaker, headphone dock, car MP3 player.
▶Fresh air unit/air conditioning line controller
-Tested wake-up time in unheated rooms in Northeast China at 20 ℃; Incell's touch can also slide on wet hands.
Wall mounted wire controller, 86 boxes of fresh air, and bath heating temperature control.
▶Small home appliance status screen
Thickness 2.06 mm, no increase in diameter when inserted into the handle of a handheld vacuum cleaner; Backlight 5 V/150 mA, battery life does not drop.
Vacuum cleaner, sweeping machine, air fryer, wall breaker, coffee machine.
▶Industrial small gateway
-Storage at 30 ℃~+80 ℃, logistics entering Xinjiang and Tibet without exploding screens; 18 bit RGB running for 100 ms with pop-up alarm.
→ 485 to Wi Fi gateway, PLC small host, machine room dynamic environmental monitoring box.
▶Car mounted rear installation
The square navigation window is placed on the right side of the dashboard, and both the driver and passenger can see it from the IPS full view angle; The lifespan of LED is 30000 hours, which is equivalent to 8 hours of operation per day for 10 years.
Rear entertainment bracket, truck reversing camera, HUD secondary screen.
▶Medical portable devices
<40g weight, added to the handheld oximeter without pressing the hand; 3.3 V single power supply, eliminating the need for a boost circuit.
→ Oximeter, fetal monitor, portable infusion pump.
▶Educational Electronics
The resolution of 480 × 480 is just enough to fit 24 × 24 Chinese characters with 20 rows and 20 columns, and the characters are so large that the elderly and children won't squint.
Word card machine, children's story machine, and elderly radio.
▶one-sentence summary
From the wall to the desktop, from the living room to the truck, from the northeast at -20 ℃ to the computer room at 80 ℃, TXW395041B0 can instantly visualize information in any 71.86 mm x 70.18 mm square area.
