10.1-inch 1200*1920 screen with fully integrated TP touch screen and LCD display screen

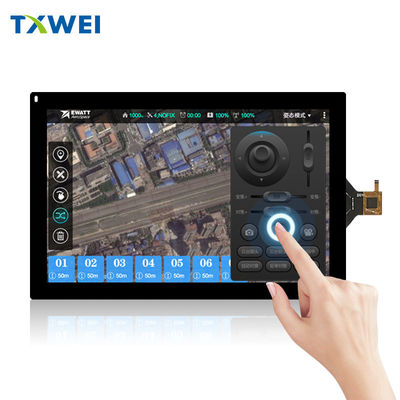

Tianxianwei Technology's 10.1 "Full View High Brightness Module TXW100089N0-SY is in mass production, with an industrial grade working temperature range of -10 ℃~+60 ℃, visible under 1900 cd/m ² sunlight. The 10.1-inch TFT LCD+CTP integrated module TXW100089N0-SY has officially been shipped in bulk. This module adopts a resolution of 1200 × RGB × 1920, a full view normally black panel, integrates a 4-lane MIPI interface, 90 white LED backlight, and G+G capacitive touch, and is designed for harsh application scenarios such as in car central control, industrial tablets, medical monitoring, outdoor terminals, etc. The first batch of 500 sets has been delivered to European in car projects.

Product Specifications
Display: 10.1 "full view angle, 225 PPI, 16.7M color, contrast ratio 1000:1
Brightness: 1900 cd/m ² (center value), readable under sunlight
Touch: G+G structure, ST1727 driver, supports 1mm glove/wet hand operation
Interface: 4-lane MIPI DSI, up to 1 Gbps per lane; 40 pin 0.5 mm FPC
Power supply: 3.3 V (main)/1.8 V (IO), adjustable backlight 24~30 V, PWM 1% -100% flicker free
Size: Module 150.06 × 229.56 × 5.7 mm; including CTP 159.96 × 241.18 × 7.75 mm
Weight: ≈ 180 g
Working temperature range: -10 ℃~+60 ℃ (industrial grade); Storage -20 ℃~+70 ℃/90% RH

Industrial grade reliability passes six extreme tests
Tianxianwei Quality Center revealed that TXW100089N0-SY has passed the high temperature 70 ℃/96 h, low temperature -20 ℃/96 h, cold and hot shock 10 cycles, high temperature and humidity 50 ℃/90% RH, ESD ± 15 kV air discharge and 1 m drop tests in one go, with brightness attenuation<3%, colorless floating, no bubbles, and no loose seals, meeting the long-term continuous operation needs of vehicle and medical use.

TXW100089N0-SY 10.1 "Full View Highlighting Module: Overview of Application Scenarios

Car electronics
Central entertainment screen/passenger information screen/intelligent rearview mirror/streaming rearview mirror/rear headrest entertainment system/ceiling screen/bus/truck central control instrument panel and 360 ° surround view

industrial control
Industrial tablet/HMI human-machine interface/CNC machine operation panel/MES terminal for production line, scanning workstation machine/outdoor AGV/forklift onboard computer

medical equipment

Portable ultrasound/monitor/operating room anesthesia machine/infusion pump/dental/beauty equipment touch screen/rehabilitation device/blood analyzer

Outdoor and Transportation
Drone ground station/remote control display console/shipborne navigation/yacht bridge/highway toll terminal/ETC all-in-one machine/shared charging station/battery swapping station screen

Commercial and Retail
Smart ordering machine/POS cashier/self-service vending machine/coffee machine/hotel/elevator digital signage/express locker/storage cabinet interactive screen

Security and Emergency Response
Intelligent access control/visual intercom/law enforcement recorder playback station/emergency command vehicle terminal/portable security check device

Smart Energy
Photovoltaic inverter local monitoring screen/wind farm operation and maintenance tablet/battery BMS maintenance terminal/oilfield/mining site control instrument

Education and conferences
Interactive electronic class board/experimental training equipment terminal/intelligent conference screen/secondary screen/live teleprompter/guide station

Household and Specialty
Smart Home Control Panel/Outdoor Camping Mobile Screen/RV Integrated Control/High Altitude/High Humidity Environment Instruments

Full view angle, high brightness, industrial grade temperature range, and long lifespan design make TXW100089N0-SY almost the first choice for any scene that requires "visibility under sunlight+touch+high reliability"
